Technical note
Technical note

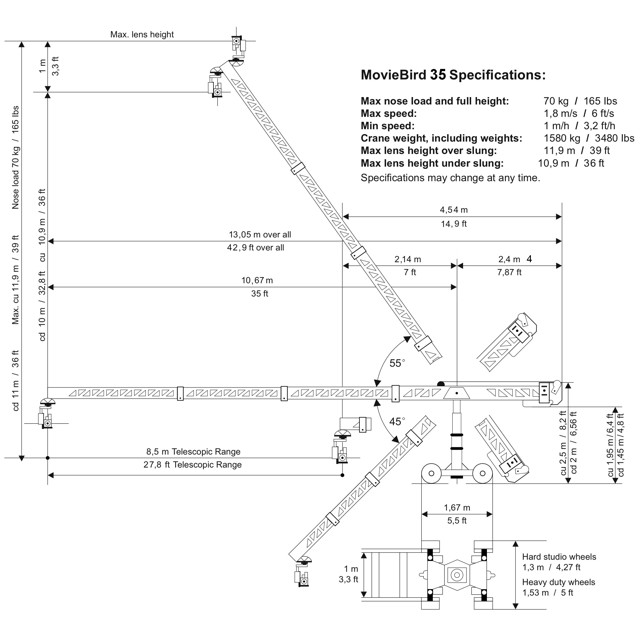

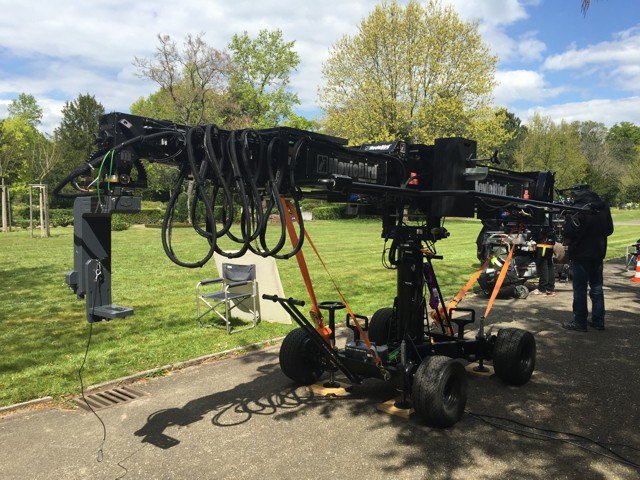

MB 35 Telescopic Crane
MB 17/20 Telescopic Crane  | Dolly | 145 x 145 cm | | Column Height | 170 - 220 cm
| | Arm length, front | 240 cm
| | Arm length, back | 140 - 500 cm. Mit Extension 240 - 600 cm | | Length, total | 740 - 840 cm | | Telecope Range | 360 cm
| | Lens height | 540 cm. 640 cm at Overslang Modus | | Lens depth | - 285 cm
| | Nose Load | 70 KG. 40 KG mit Extension | | Weight max | 770 KG | | Load at jacks | 550 KG
| | Power | 110 - 230 V AC, 13 Amps max |

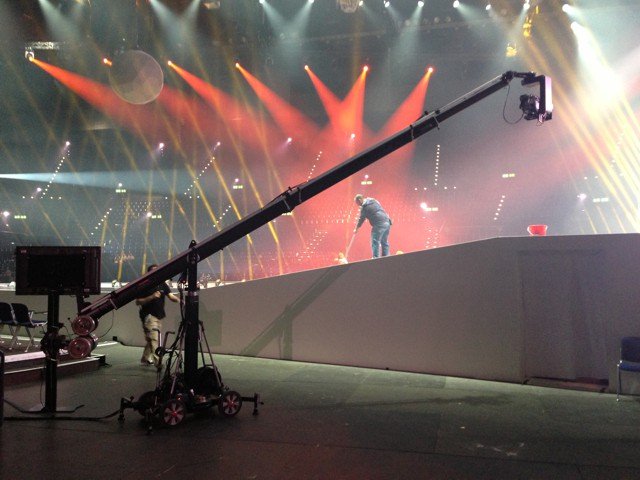

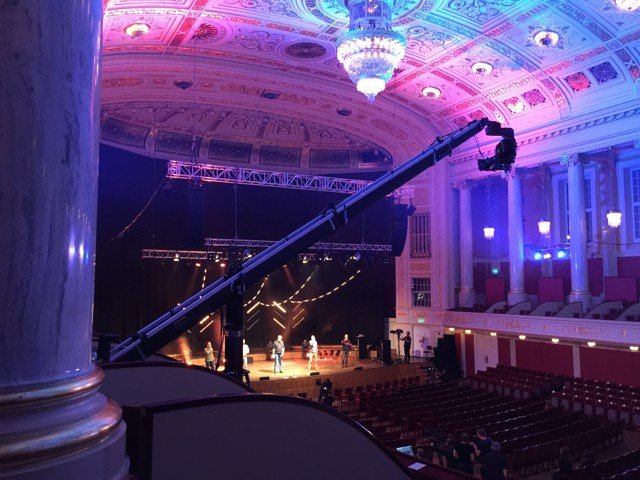

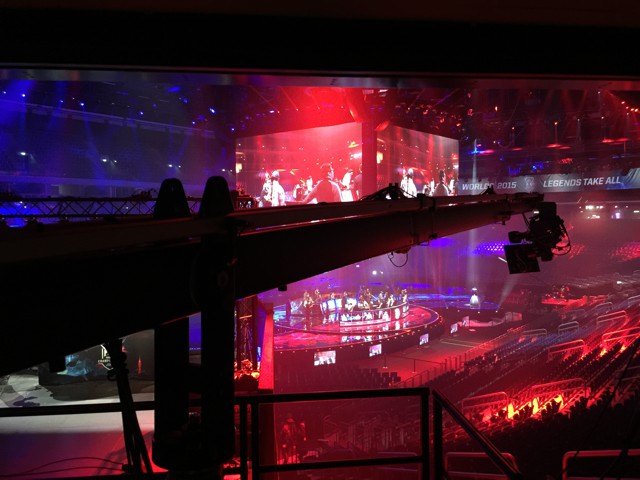

Scanner PRO Crane
| Dolly | 137 x 90 cm | | Column Height | 200 cm
| | Arm length, front | 175 - 215 cm
| | Arm length, back | 395 - 550 cm | | Length, total | 570 - 765 cm | | Lens height | 620 cm. 660 cm im Overslang Modus | Lens depth
| - 260 cm
| | Nose Load | 45 - 35 KG ( kurz - lang )
| | Weight max | 400 KG | | Load at jacks | 200 KG
| | Power | 110 - 230 V AC, 7 Amps max |
|
|
